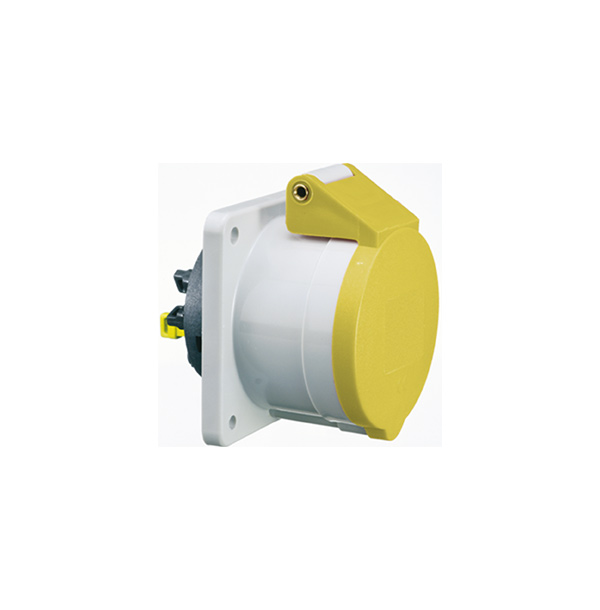

Undercover sockets
    • Product description
    • BALS Item No
      13714
    • EAN
      4024941014625
    • Packaging unit
      10 PCs
  • Product description
  • BALS Item No
    13714
  • Product category
    Undercover sockets
  • Voltage
    110V(50-60Hz)
  • Current
    32A
  • Number of poles
    5P
  • Position of earth contact
    9h
  • Frequency
    50-60Hz
  • Protection degree
    IP44
  • Minimum conductor section
    2.5mm²
  • Maximum conductor section
    10mm²
  • Shell material
    polyamide
  • Characteristic
    ●It was connected with a fast spring. The contact of Kontex Plus was 75 x 75mm
  • Weight(g/Pcs)
    280
  • Packaging
    10 Pcs
