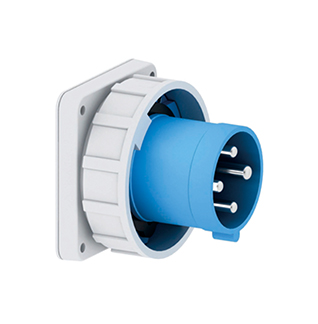

Flange type appliance socket
    • Product description
    • BALS Item No
      2860
    • EAN
      4024941014625
    • Packaging unit
      10 PCs
  • Product description
  • BALS Item No
    2860
  • Product category
    Flange type appliance socket
  • Voltage
    230V(50-60Hz)
  • Current
    125A
  • Number of poles
    3P
  • Position of earth contact
    9h
  • Frequency
    50-60Hz
  • Protection degree
    IP67
  • Minimum conductor section
    2.5mm²
  • Maximum conductor section
    10mm²
  • Shell material
    polyamide
  • Characteristic
    Flange 110 × 106mm, 125A flange is 120 × 120mm, nickel plated contact, cage terminal, high temperature resistant socket core
  • Weight(g/Pcs)
    200
  • Packaging
    10 Pcs
